Hol tu'lu'bej
specification
grade a: nach diameter dto shank diameter d ratio around 1.7 ~ 2.2.
grade b: nach diameter dto shank diameter d ratio around 1.2 ~ 1.4.
raS 1. Grade atrimetal veragh dimensionsandamp; tolerances (mm)
item | Diameter d(Φ) nach | thickness(t) nach | patlh Thickness (s1) Contact nach | shank Contact patlh Thickness (s2) | shank diameterd(Φ) | shank 'ab | spherical Radius | angleθ(o) demould |
basic Size | 2.5~3.2 | 0.4~1.1 | 0.15~0.5 | 0.2~1.0 | 1.5 | 1.0~2.5 | 5~12 | 11 |
3.3~4.2 | 0.6~1.2 | 0.25~0.6 | 0.2~1.0 | 2.0 | 1.3~3.5 | 6~12 | ||
4.3~5.0 | 0.8~1.5 | 0.35~0.7 | 0.2~1.0 | 2.5 | 1.5~4.0 | 8~15 | ||
tolerance range | ±0.08 | ±0.03 | ≤0.4+0.04 | ±0.04 | -0.02 | +0.15 | ±2 | ±2 |
2 raS. grade b trimetal veragh dimensionsandamp; tolerances (mm)
item | Diameter d(Φ) nach | thickness(t) nach | patlh Thickness (s1) Contact nach | shank Contact patlh Thickness (s2) | shank diameterd(Φ) | shank 'ab | spherical Radius | angleθ(o) demould |
basic Size | 2.5~3.5 | 0.4~0.9 | 0.2~0.35 | 0.3~0.5 | 1.8~2.2 | 0.8~1.5 | 6~12 | 13 |
3.0~4.0 | 0.6~1.1 | 0.25~0.5 | 0.3~0.6 | 2.4~2.7 | 0.9~1.8 | 8~15 | ||
4.0~4.5 | 0.7~1.2 | 0.3~0.55 | 0.3~0.6 | 2.9~3.2 | 1.0~2.0 | 10~20 | ||
4.5~5.5 | 0.8~1.5 | 0.3~0.6 | 0.4~0.7 | 3.5~4.5 | 1.5~2.5 | 12~30 | ||
5.5~6.5 | 0.9~1.5 | 0.3~0.6 | 0.4~0.7 | 4.5~5.5 | 1.5~3.0 | 15~40 | ||
6.5~7.5 | 1.0~2.0 | 0.4~0.7 | 0.5~0.8 | 5.5~6.5 | 2.0~4.5 | 20~60 | ||
tolerance range | ±0.08 | ±0.03 | ≤0.4+0.04 | ±0.04 | -0.02 | +0.15 | ±2 | ±2 |
'elbogh Application
normally lo' trimetal veragh doublesidescontacts rewbe'mey'e' lo' neH relays, boch chemvaH Ho'Du' micro, bottomswitches je 'ejcontactors.
'elbogh Hap 'u'
agcu ghap cu, ag ghap cu, agni ghap cu, agsno2in2o3 ghap cu, agsno2 ghap cu, agcdo ghap cu, agcuo ghap cu, agzno ghap cu.

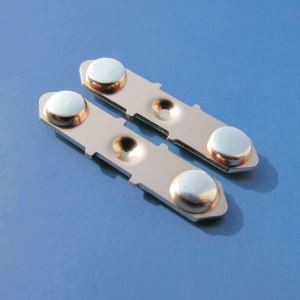

product Photo cha'
aokai Electric nIvbogh Hal jen laHlIj. silver brass trimetal contact veragh ce certification je. wa' largest qabwIj 'ej suppliers qaStaHvIS jungwoq qaSchoH 2008 establishment manufacturers. nuqneH laSvargh contact products.
